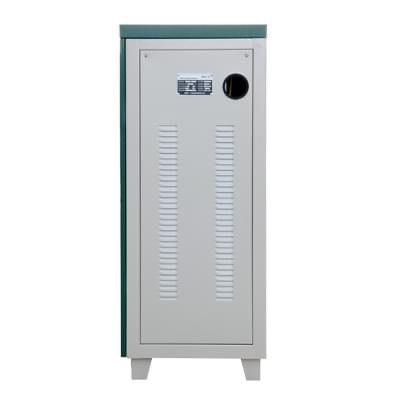

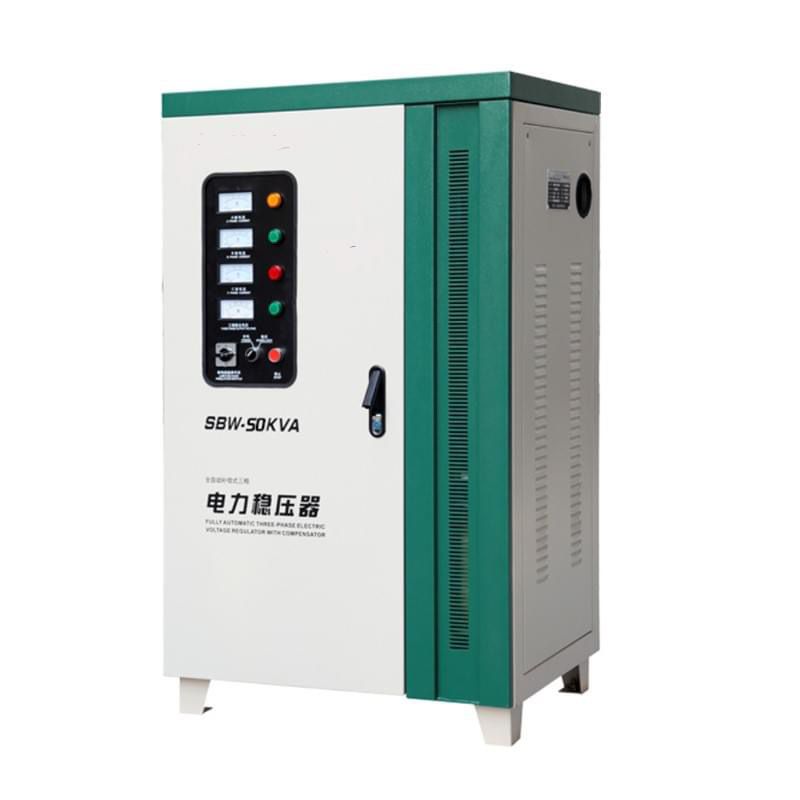

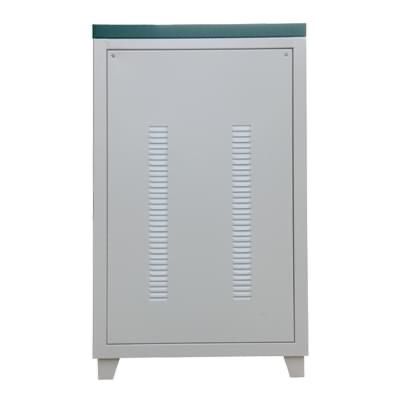

SBW Series Three Phase Full Automatic Compensate Voltage Stabilizer
Features
1.Reasonable Price,Best Quality;
2.Reliable Performance;
3.Long-term With Simple Operation;
4.Servo motor drice;
5.Full Automatic Timely;
Application
Widely used in the fields of post office,store,elevator,hospital,school,publishing house and stock exchange where normal voltage is in need,and also can be used in the factories of large and middle-scale industrial and mining corp,it is very much suitable for some important devices and supporting single machine.
Technical parameter
1. Power Range: 30kVA-2500kVA (three phase);
2. Input Voltage: Ordinary 304-456V, or optional larger range;
3. Output Voltage: 380V±1-5% (Special input and output center voltage, like 3 phase 220v, 400v, 415v, etc, can be customized);
4. Coil Material: Ordinary aluminum and copper mixed, full copper can be customized, please let us know when your place order;
5. Display: Ordinary meter type, LED or LCD display screen can be customized, please let us know when your place order;
6. Frequency: 50~60Hz;
7. Electric intensity: The voltage for electrical strength and power frequency sinusoidal is 2000V without breakdown and flash over when lasts 1minute;
8. Overload Capacity: It can last 1 minute at the rated current of two times;
9. Protective function:it offers the protections against over voltage,over current,phase shortage and phase-sequence(The single-phase offers no protection against the phase shortage and phase-sequence)and mechanical failure;
10. Adjusting Time: <1s ( when input voltage has a change of 10%);
11. Response Speed: <1.5S
12. Waveform Distortion: No additional waveform distortion;
13. Efficiency: >98%;
14. Relative Humidity: ≤95%;
15. Ambient Temperature: -5 ~ +40°C;
16. Insulation Resistance: ≥2MΩ;
17. Packaging Detail: In Standard Plywood Case
