ZIGOR 120 KVA Ottawa Pro Online UPS (Standard Backup)
Product Code: 264
Stock: In-Stock
Price: ৳ 0.0

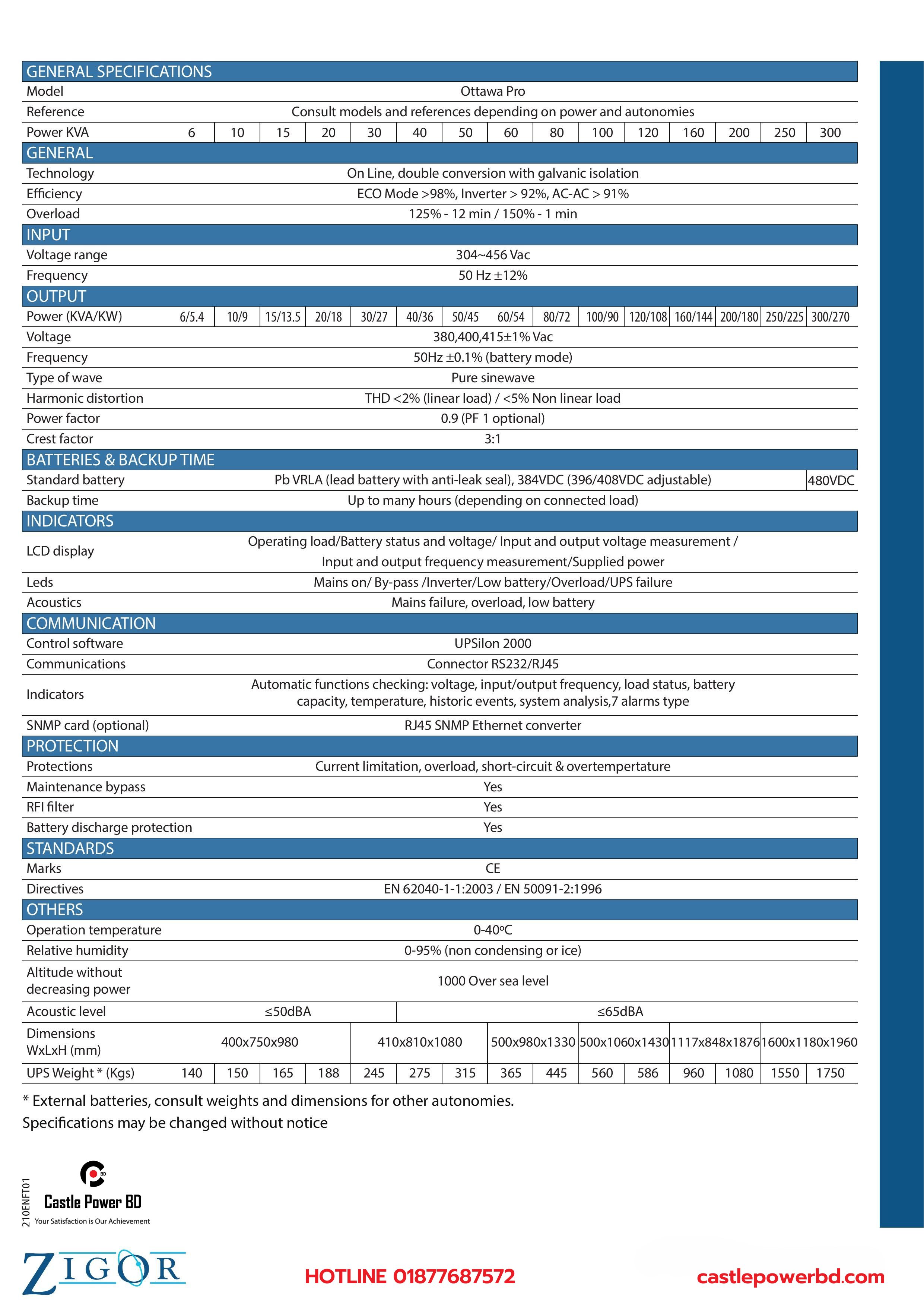

| Main Feature | ||
| Capacity | 10 to 200 KVA | |
| Display Type | Touch screen LCD display (Operating load/Battery status and voltage/ Input and output voltage measurement / Input and output frequency measurement/Supplied power) | |
| Load Capacity | Overload: 125% - 12 min / 150% - 1 min | |
| Input Voltage | 304~456 Vac | |
| Output Voltage | 380,400,415±1% Vac | |
| Frequency (Battery Mode) | Input Frequency: 50 Hz ±12% Output Frequency: 50Hz ±0.1% (battery mode) | |
| Battery | Extended battery options available Standard battery: Pb VRLA (lead battery with anti-leak seal), 384 VDC, 480VDC(160/200KVA) Battery discharge protection | |
| Alarm | 7 Alarms Type | |
| Input Features | ||
| Frequency | 50 Hz ±12% | |
| Power Factor | Output power factor 0.9 | |
| Voltage Range | 304~456 Vac | |
| Output Features | ||
| Backup Time | Up to many hours (depending on connected load) | |
| Power Factor | Power: from 10 to 200 KVA Output power factor 0.9 Altitude without decreasing power: 1000 over sea level | |
| Type of Wave | Pure sinewave | |
| Rated power | THD <2% (linear load) / <5% Non linear load | |
ZIGOR 120 KVA Ottawa Pro Online UPS (Standard Backup)
Key Features
Model: ZIGOR Ottawa Pro
Three-phase input/three-phase output
Power: from 10 to 200 KVA
DSP control technology
Output power factor 0.9

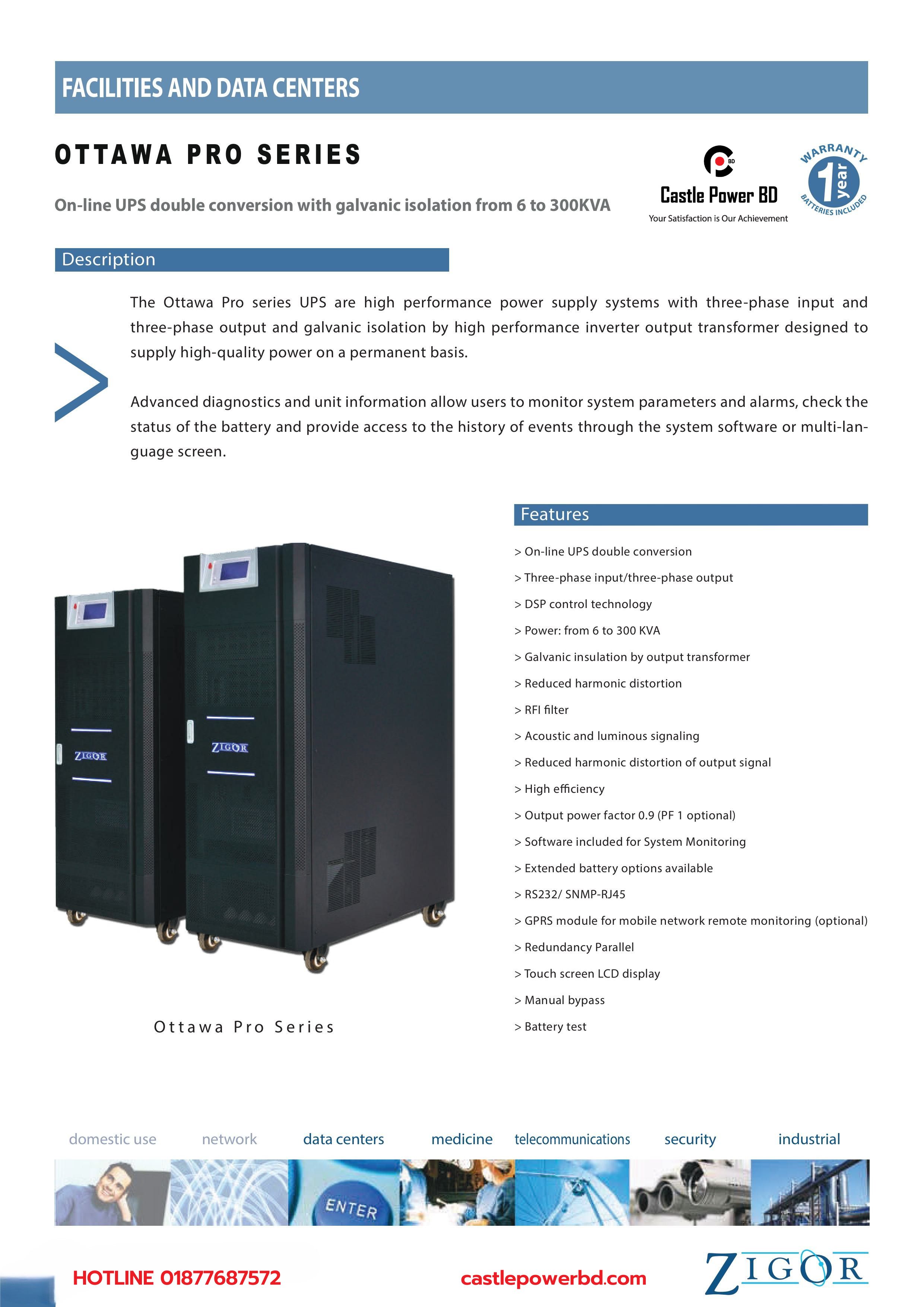

ZIGOR Ottawa Pro Online UPS comes wiith Three-phase input/three-phase output, Power: from 10 to 200 KVA, DSP control technology with Output power factor 0.9. The Ottawa Pro series UPS are provides high performance power supply systems with three-phase input and three-phase, output and galvanic isolation by high performance inverter output transformer designed to supply high-quality power on a permanent basis. In this Online UPS advanced diagnostics and unit information allow users to monitor system parameters and alarms, check the status of the battery and provide access to the history of events through the system software or multi-language screen. This new ZIGOR Ottawa Pro series Online UPS features with On-line UPS double conversion, Three-phase, input/ three-phase output, DSP control technology, Galvanic insulation by output transformer, Reduced harmonic distortion, RFI filter, Acoustic and luminous signalling. This UPS Reduced harmonic distortion of output signal. This Online UPS also comes with High efficiency, Output power factor 0.9, Software included for System Monitoring. In this online UPS, the Extended battery options available. It is also configured with RS232/ SNMP-RJ45. Here, the GPRS module for mobile network remote monitoring (optional). This Online UPS also features with Redundency Parallel (optional), Touch screen LCD display and Manual bypass.
