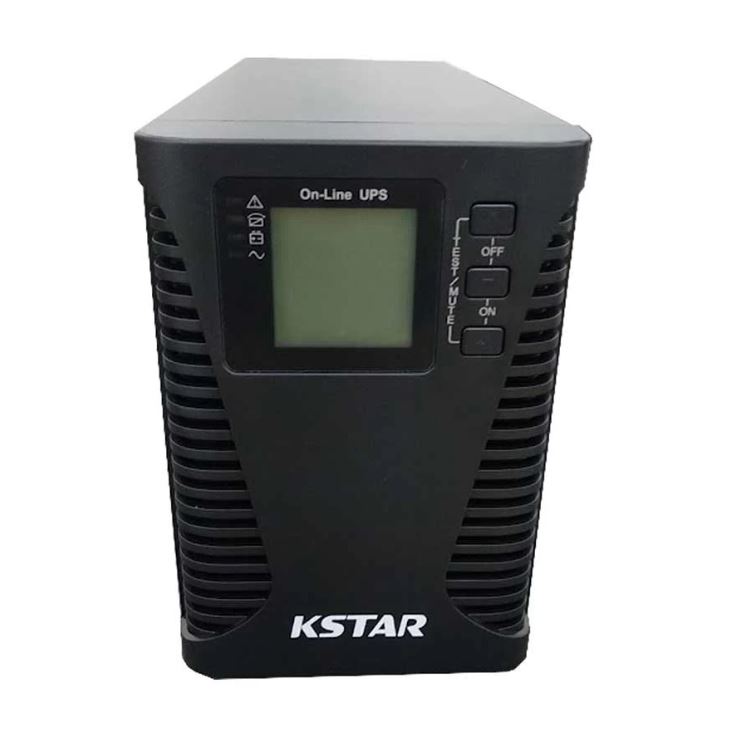

Kstar HP Series 1 KVA Online UPS
Product Code: 231
Stock: In-Stock
Price: ৳ 21,000.0
৳ 25,000.0
General
Brand
Kstar
Model
Kstar HP Series
Type
Online UPS
Technical Info
Volt Ampere (VA)
1000V
Input Voltage (V)
110 - 300Vac
Output Voltage (V)
220/ 230/ 240Vac +1%
Frequency (Hz - KHz)
46-54Hz or 56-64Hz (auto sensing)
Load Capacity
700W
Transfer Rate
0ms
LED Display
No
Battery Info
Battery.
3 pc with 12V & 7Ah
Back up time(Full load)
5 Minutes
Back up time (Half load)
12 Minutes
3 Port
Warranty
Warranty Details
1 Year (Box Mandatory While Claiming)
Others
Standard Backup, For PC and Networking Device only, Part No: HP910CS, Nominal voltage: 220/230/240Vac, Power factor: >0.99, Output frequency: Synchronized with the utility on AC mode; 50Hz/60Hz +- 0.2% on Battery mode, Harmonic distortion (THD): <3% (linear load), Crest factor: 3:1 (Max), Efficiency: >= 86%, Battery DC voltage: 36Vdc, Charge Current(standard unit): 1A, Charge Current(long run unit): 7A, Typical recharge time: 8 hours (to 90% of full capacity), Communication interface: RS232, Port: Fan, Battery socket, Output socket, RJ45, Input socket, Input breaker, Transfer time: Between AC Mode and Bypass Mode: 4ms (typical value 2.5ms), Operating temperature: 0 Degree C -40 Degree C, Storage temperature: -25 Degree C - 55 Degree C, Humidity range: 0%-95% (non-condensing), Altitude: <1500m, Noise level: <45db, LCD indication: 1. Input voltage/frequency, battery voltage, output voltage/frequency, load watt/VA and percent, inverter temperature 2. Operation mode such as ``on line``, ``on batt``, or ``on bypass``, LED indication: 1. Green LED for normal operation, 2. Yellow LED for warning condition, 3. Red LED for abnormal operation, Overload capability: 1. >110%, 30s turn to bypass mode, 2. >150%, 300ms turn to bypass mode.
Specialty
High frequency and double conversion online technology. fully digitized microDrocessor control Wide input voltage range. LCD display. UPS start up without battery Cold start. Advanced battery management. Automatic battery charging in UPS off mode. Lightning and surge protection. Short circuit and overload inrotection. Battery voltage disDlay. EMI/RFI noise filter.
Country Of Origin
China
Made in/ Assemble
China
Kstar HP Series 1 KVA Online UPS
Type - Online UPS
Input Voltage (V) - 110 - 300Vac
Output Voltage (V) - 220/ 230/ 240Vac +1%
Load Capacity - 700W
Back up time(Full load) - 5 Minutes
Body Material - Unmentioned
